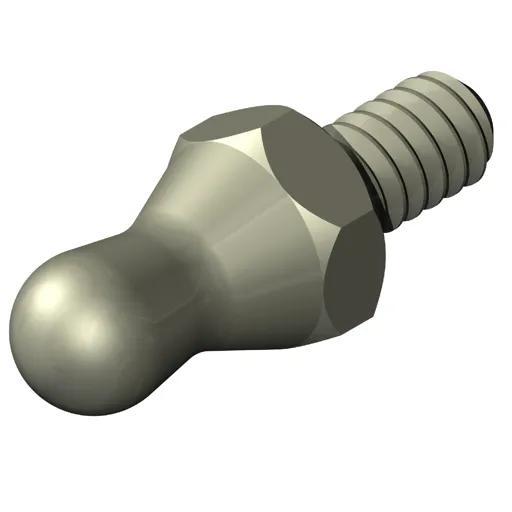

1/4" Steel Hex Male Ball Stud
Part ID: STB116-0.570-0.375-00
Technical Specifications
| Material Grade (Alloy): |
Steel 12L14 (QQ-S-637, ASTM-A-108) 1215 (QQ-S-637, ASTM-A-108) |
|---|---|
| Profile | Hex |
| Outside Diameter | 1/4" |
| Overall Length | 0.945" |
| Male Thread | #6-32 |
|---|---|
| Thread Length | 3/8" |
| Finish Desc. (Spec) |
Unplated (Plain) |
| Compliant To | RoHS, WEEE, DFARS, Conflict Minerals |
Product Description
Male ball studs are a spring catch style fastener and ideal for applications where repeated engagement and disengagement are required. These are a popular choice for electrical panels, access doors, cabinet doors and other sheet metal enclosures. Different tensions with the same stud can be achieved depending on the Ball-Stud Speed Clip* chosen. The hex shape allows for greater torquing as the flat sides allow for wrench tightening. Steel is inexpensive, easy to achieve finer surface quality requirements and provides relatively high strength properties. Multiple plating options are available to increase the material's corrosion resistance and alter its appearance.
Stock and Lead Time
| Stock | 0 | Available |
| Manufacture Lead Time | 11 | Weeks |
Pricing as Unplated
| Quantity | Online Price |
|---|---|
| 100 | 0.750 |
| 250 | 0.600 |
| 500 | 0.489 |
| 1,000 | 0.375 |
| 2,500 | 0.323 |
| 5,000 | 0.285 |
| 10,000 | 0.242 |
| 25,000 | 0.212 |
| 50,000 | 0.182 |
If you wish to see distributor prices, login or create an account and request to be approved as a distributor.
To order, please send a purchase order to info@lyntron.com or contact your local distributor. Orders may be adjusted to meet line and/or order minimums. See general terms for details.
