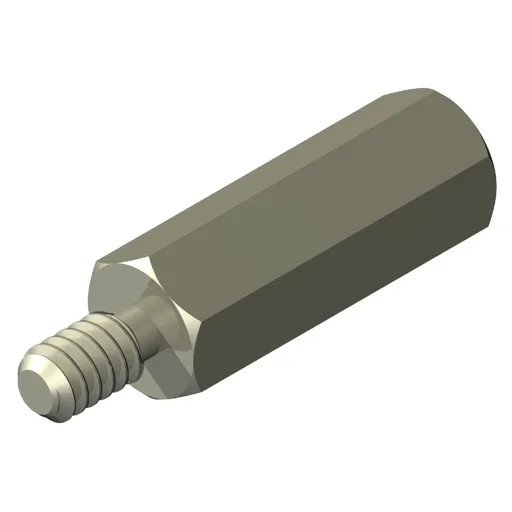

Male-Female Standoff, Hex, Unplated, Steel, #4-40, 5/16" Body Length

Part ID: ST6980-0.312-00

Technical Specifications

Material
Grade (Alloy):
Steel
12L14 (QQ-S-637, ASTM-A-108)
1215 (QQ-S-637, ASTM-A-108)
Profile Hex
Outside Diameter 1/4"
Body Length 5/16"
Male Thread Thread Size: #4-40
Thread Length: 0.187
Female Thread #4-40
Finish Desc. (Spec) Unplated
(Plain)
Compliant To RoHS, WEEE, REACH, DFARS, Conflict Minerals

Available Finishes

Code Description Specification Quantity Available
00 Unplated Plain 0
31 Clear Cadmium SAE-AMS QQ-P-416 0
32 Yellow Cadmium SAE-AMS QQ-P-416 0
33 Black Zinc ASTM B633 0
34 Zinc Clear Chromate with Blue Tint ASTM-B633 249
35 Zinc Clear ASTM-B633 0
36 Zinc Yellow Chromate ASTM-B633 0
37 Zinc Yellow ASTM-B633 -30,000
42 Electro Tin - Dull with Copper Flash ASTM B 545 0
43 Electro Tin - Bright ASTM B 545 0
48 Copper-Nickel-Bright Tin ASTM B545 0
50 Black Oxide MIL-C-13924 0
52 Black Oxide MIL-C-13924 0
61 Nickel AMS-QQ-N-290 0
63 Ductile Nickel SAE-AMS-QQ-N-290 0
66 Electroless Nickel SAE AMS-C-26074 0
91 Silver QQ-S-365 0

Product Description

Still widely used in computers and electronic equipment to separate circuit boards for airflow and allow clearance for installed components. As these come in a wide array of sizes and threads, nearly every industry has used them as thread adapters, spacers, connectors and other unique applications. The hex shape allows for greater torquing as the flat sides allow for wrench tightening. Steel is inexpensive, easy to achieve finer surface quality requirements and provides relatively high strength properties. Multiple plating options are available to increase the material's corrosion resistance and alter its appearance.

Stock and Lead Time

Stock 0 Available
Manufacture Lead Time 7 Weeks

Pricing as Unplated

Quantity Online Price
100 0.714
250 0.576
500 0.482
1,000 0.372
2,500 0.303
5,000 0.249
10,000 0.219
25,000 0.198
50,000 0.183
100,000 0.168

If you wish to see distributor prices, login or create an account and request to be approved as a distributor.

To order, please send a purchase order to info@lyntron.com or contact your local distributor. Orders may be adjusted to meet line and/or order minimums. See general terms for details.
