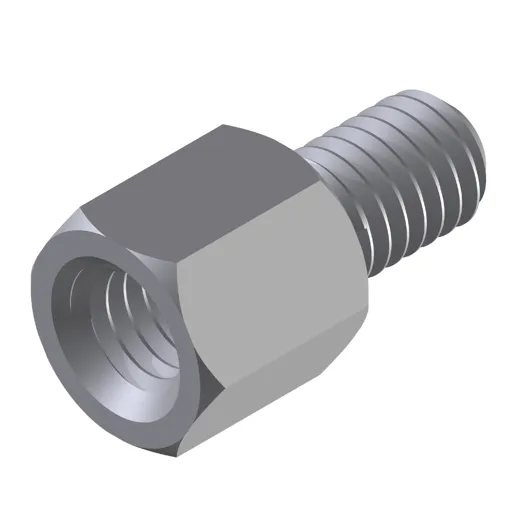

Jack Screw, Hex, Unplated, Steel, #4-40, 3/16" Body Length

Part ID: ST9415-00

Technical Specifications

Material
Grade (Alloy):
Steel
12L14 (QQ-S-637, ASTM-A-108)
1215 (QQ-S-637, ASTM-A-108)
Profile Hex
Outside Diameter 3/16"
Body Length 3/16"
Male Thread #4-40
Thread Length 1/2"
Female Thread #4-40
Finish Desc. (Spec) Unplated
(Plain)
Compliant To RoHS, WEEE, DFARS, Conflict Minerals

Available Finishes

Code Description Specification Quantity Available
00 Unplated Plain 2,581
31 Clear Cadmium SAE-AMS QQ-P-416 0
32 Yellow Cadmium SAE-AMS QQ-P-416 900
33 Black Zinc ASTM B633 0
34 Zinc Clear Chromate with Blue Tint ASTM-B633 3,083
36 Zinc Yellow Chromate ASTM-B633 547
43 Electro Tin - Bright ASTM B 545 0
48 Copper-Nickel-Bright Tin ASTM B545 0
50 Black Oxide MIL-C-13924 0
52 Black Oxide MIL-C-13924 0
61 Nickel AMS-QQ-N-290 115
63 Ductile Nickel SAE-AMS-QQ-N-290 0
66 Electroless Nickel SAE AMS-C-26074 0

Product Description

A Jack Screw is simply a 3/16” Hex, 4-40 Male-Female Standoff, that is 3/16” in length. What separates these is that you can choose the male-thread length that will best fit your application. These are also called Female Screw-Locks and are most commonly used in mounting D-Sub Connectors. Each Jack Screw is available as a stand-alone screw, but visit the Jackscrew Assembly and Jack Screw Bulk Kit Sections to purchase the complete set of mounting hardware. The hex shape allows for greater torquing as the flat sides allow for wrench tightening. Steel is inexpensive, easy to achieve finer surface quality requirements and provides relatively high strength properties. Multiple plating options are available to increase the material's corrosion resistance and alter its appearance.

Stock and Lead Time

Stock 2,581 Same Day
Manufacture Lead Time 11 Weeks

Pricing as Unplated

Quantity Online Price
100 0.585
250 0.435
500 0.347
1,000 0.287
2,500 0.251
5,000 0.218
10,000 0.188
25,000 0.153
50,000 0.131

If you wish to see distributor prices, login or create an account and request to be approved as a distributor.

To order, please send a purchase order to info@lyntron.com or contact your local distributor. Orders may be adjusted to meet line and/or order minimums. See general terms for details.
