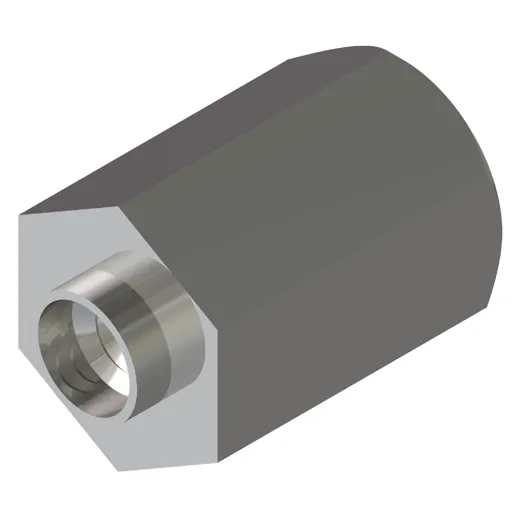

Swage Standoff, Hex, Unplated, Aluminum, 0.234" Shank OD, #8-32, 1/2" Body Length

Part ID: AA6923A-0.500-00

Technical Specifications

Material
Grade (Alloy):
Aluminum
2011 (ASTM-B-211, QQ-A-225/3)
K211 (ASTM-B-211, QQ-A-225/3)
6061 (ASTM-B-211, QQ-A225/8)
Profile Hex
Outside Diameter 5/16"
Overall Length 0.575"
Female Thread #8-32
Swage Anvil Code 363-3
Swage Punch Code 234
Shank Length: 0.075"
Outside Diameter: 0.234"
Inside Diameter: 0.201"
Panel Thickness: 1/32"
Code: A
Panel Hole Size 0.236-0.239
Finish Desc. (Spec) Unplated
(Plain)
Compliant To RoHS, WEEE, REACH, Conflict Minerals

Available Finishes

Code Description Specification Quantity Available
00 Unplated Plain 0
02 Caustic Etch Caustic Etch 0
12 Clear Anodize MIL-A-8625 0
14 Black Anodize Type II 0
21 Clear Iridite MIL-DTL-5541 0
22 Gold Iridite MIL-DTL-5541 0
25 Clear Iridite MIL-DTL-5541F 0

Product Description

Swage Standoffs are used to separate, position or connect components in an assembly. The swage end adds a permanent installation option, keeping the standoff fixed to the board.

Originally designed for spacing and stacking circuit boards, swage standoffs are now available in a variety of threads, and length combinations for a wider range of applications. They also come with a variety of plating options and can be created from materials including:

The hex shape allows for greater torquing as the flat sides allow for wrench tightening. Aluminum is widely used in Aerospace applications due to its high strength to weight properties. RoHS certifications available.

Stock and Lead Time

Stock 0 Available
Manufacture Lead Time 8 Weeks

Pricing as Unplated

Quantity Online Price
100 0.815
250 0.651
500 0.530
1,000 0.408
2,500 0.350
5,000 0.309
10,000 0.261
25,000 0.228
50,000 0.197
