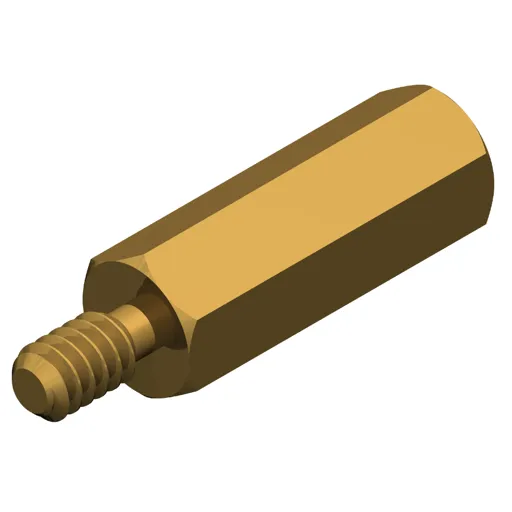

4 (1/4") Brass (Cadmium) Hex NAS1829 Male-Female Standoff

Part ID: NAS1829B4C08

Technical Specifications

Grade (Alloy):
Brass (Cadmium)
360 (ASTM-B-116, QQ-B-626)
Profile Hex
Outside Diameter 4 (1/4")
Body Length 1/2" (0.5")
Male Thread Thread Size: C (#4-40)
Thread Length: 0.187
Female Thread C (#4-40)
Finish Desc. (Spec) Yellow Cadmium
(SAE-AMS QQ-P-416)
Compliant To RoHS, WEEE, Conflict Minerals

Product Description

Still widely used in computers and electronic equipment to separate circuit boards for airflow and allow clearance for installed components. As these come in a wide array of sizes and threads, nearly every industry has used them as thread adapters, spacers, connectors, and other unique applications. The hex shape allows for greater torquing as the flat sides allow for wrench tightening. Brass is corrosion resistant, nonmagnetic, and easily machinable. Base metal is yellow, but many plating options are available when different colors are required.

Stock and Lead Time

Stock 0 Available
Stock to Plate 0 1 to 2 weeks
Manufacture Lead Time 11-12 Weeks

Pricing as Yellow Cadmium

Pricing information not available. But you can always request a quote and we'll get back to you.

Document Downloads
