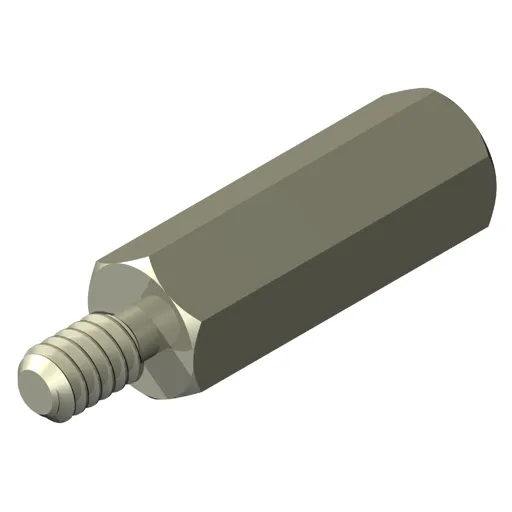

3 (3/16") Steel (Cadmium) Hex NAS1829 Male-Female Standoff

Part ID: NAS1829-3A06

Technical Specifications

Material
Grade (Alloy):
Steel (Cadmium)
4130 (AMS6346)
Profile Hex
Outside Diameter 3 (3/16")
Body Length 3/8" (0.375")
Male Thread Thread Size: A (#2-56)
Thread Length: 0.156
Female Thread A (#2-56)
Finish Desc. (Spec) Yellow Cadmium Heated
(SAE-AMS QQ-P-416)
Compliant To RoHS, WEEE, Conflict Minerals

Product Description

Still widely used in computers and electronic equipment to separate circuit boards for airflow and allow clearance for installed components. As these come in a wide array of sizes and threads, nearly every industry has used them as thread adapters, spacers, connectors, and other unique applications. The hex shape allows for greater torquing as the flat sides allow for wrench tightening. Steel is inexpensive, easy to achieve finer surface quality requirements and provides relatively high strength properties. Multiple plating options are available to increase the material's corrosion resistance and alter its appearance.

Stock and Lead Time

Stock 0 Available
Stock to Plate 0 1 to 2 weeks
Manufacture Lead Time 11-12 Weeks

Pricing as Yellow Cadmium Heated

Pricing information not available. But you can always request a quote and we'll get back to you.

#
